원래 장소:
무한 중국
브랜드 이름:
Springtek
인증:
ISO9001 RoHS FCC CE
모델 번호:
Ｓ -XP1031L20 시디

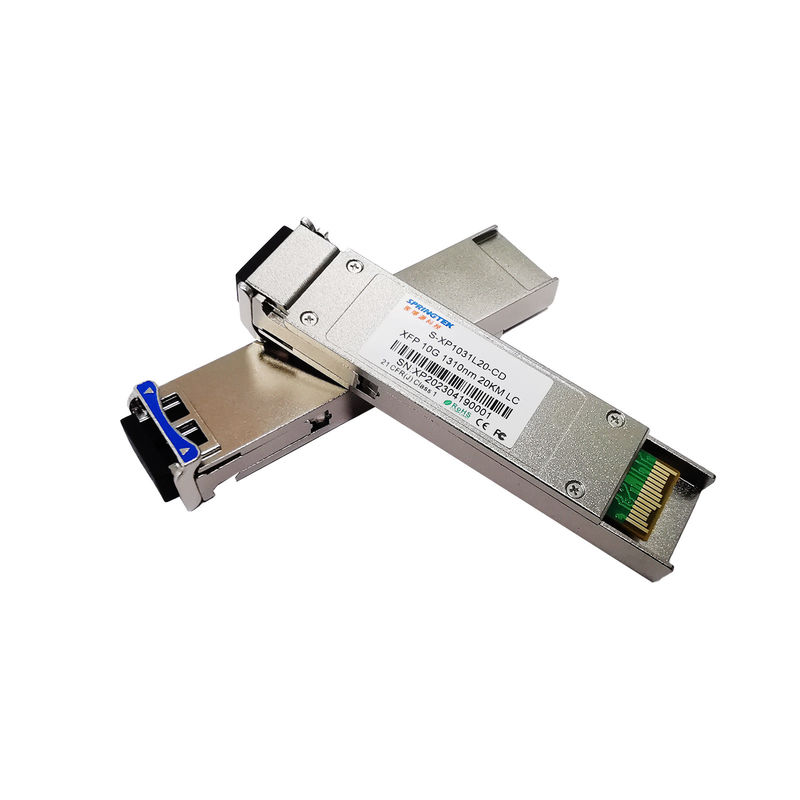

XFP 10G SR LR ER ZR 300m 10km 20km 40km 60km 80km MMF SMF Duplex LC DDM LR XFP Compatible transceiver module
Ordering information
| Part Number | Product Description |
| S-XP1031L20-CD | XFP, 10Gbps, 1310nm, SMF, 20km , LC, 0ºC~+70ºC, With DDM |
Description
Springtek XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA), supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 20km on SMF.
The transceiver module comprises a transmitter with 1310nm DFB laser and a receiver with a PIN photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.
Features
Applications
Absolute Maximum Ratings
| Parameter | Symbol | Min | Typ | Max | Unit |
| Power Supply Voltage | Vcc | -0.5 | 4.5 | V | |
| Storage Temperature Range | Ts | -40 | +85 | °C | |
| Relative Humidity - Operating | RHO | 5 | 85 | % |
Any stress beyond the maximum ratings can result in permanent damage. The device specifications are guaranteed only under the recommended operating conditions.
Recommended Operating Conditions
| Parameter | Symbol | Min | Typ | Max | Unit |
| Case Operating Temperature Range | Tc | 0 | +70 | °C | |
| Power Supply Voltage | Vcc | 3.135 | 3.30 | 3.465 | V |
| Supply Current | Icc | 500 | mA | ||
| Data Rate | BR | 9.953 | 11.1 | Gbps |
Optical and Electrical Characteristics
| Transmitter Electrical Characteristics | |||||||
| Parameter | Symbol | Min | Typical | Max | Unit | Notes | |
| Centre Wavelength | λc | 1270 | 1310 | 1350 | nm | ||
| Spectral Width(-20dB) | Δλ | 3 | nm | ||||
| Side-Mode Suppression Ratio | SMSR | 30 | dB | ||||
| Average Output Power | Pout | -6.5 | +0.5 | dBm | 1 | ||
| Extinction Ratio | ER | 3.5 | dB | ||||
| Data Input Swing Differential | VIN | 180 | 950 | mV | 2 | ||
| Input Differential Impedance | ZIN | 90 | 100 | 110 | Ω | ||
| TX Disable | Disable | 2.0 | Vcc | V | |||
| Enable | 0 | 0.8 | V | ||||
| Receiver Electrical Characteristics | |||||||
| Parameter | Symbol | Min | Typ | Max | Unit | Notes | |
| Centre Wavelength | λc | 1260 | 1600 | nm | |||
| Receiver Sensitivity | -14.5 | dBm | 3 | ||||
| Receiver Overload | 0.5 | dBm | 3 | ||||
| LOS De-Assert | LOSD | -15.5 | dBm | ||||
| LOS Assert | LOSA | -26 | dBm | ||||
| LOS Hysteresis | 0.5 | 4 | dB | ||||
| Data Output Swing Differential | Vout | 400 | 600 | 800 | mV | 2 | |
| LOS | High | 2.0 | Vcc | V | |||
| Low | 0.8 | V | |||||
| Notes | |||||||
|
1. The optical power is launched into SMF. 2. Internally AC-coupled. 3. Measured with a PRBS 231-1 test pattern @9953Mbps, BER ≤1×10-12. |
|||||||
